Supreme LED brightness promises reliable visibility even in urban areas with much background lighting.
| |
|
| Integrating solar cell, rechargeable battery set and LED illumination, this unit highlight the roadway situations ensuring traffic
safety. Supreme LED brightness promises reliable visibility even in urban areas with much background lighting. | |

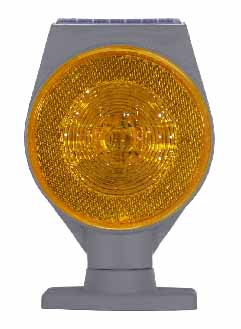

| In-curb Type Object Marker 緣石植入型障礙物標記 | |
| MODEL No. | FTM10CALEL | |
| DESCRIPTION | In-curb Type Object Marker | |
| SOLAR MODULE | Type | Single/Multi-Crystalline Solar Cell |
| Maximum Power Voltage (V/Vmp) | 3.5 | |
| Maximum Power Current (mA/lmp) | 53.6 | |
| BATTERY | Type | Lead-Acid Battery |
| Nominal Voltage (V) | 2 | |
| Capacity (Ah) | 2.5 | |

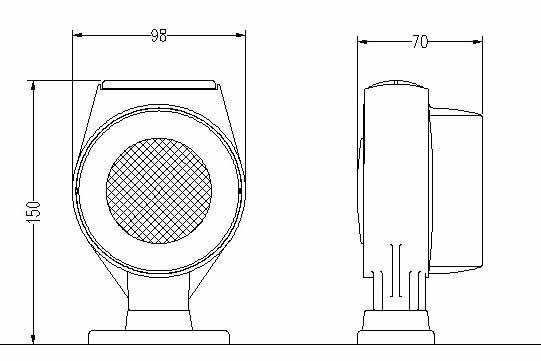

| LIGHT OUTPUT | Size (mm) | Attached Drawing |
| Light Source | 1 LEDs | |
| Mode | Flash | |
| Frequency (time/min) | 360 | |
| Length (ms/time) | - | |
| Operation (hrs/day) | 12 | |
| Power Consumption (mWS) | 10.8 | |
| Working Temperature (℃) | -20~60 | |
| Storage Temperature (℃) | -30~60 | |
|
