Application : Workzone

Operation mode :



 SPECIFICATIONS

 MODEL No.

 FTHP07ALEL

 DESCRIPTION

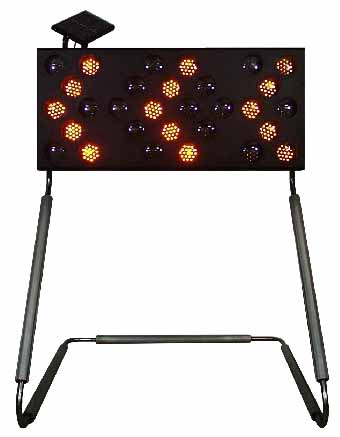

 Changeable Directional Sign

 SOLAR PANEL

 Type

 Single-crystalline

 Maximum Power Voltage

 20 V

 Maximum Power Current

500 mA

 BATTERY

 Type

 Lead-Tin Battery

 Nominal Voltage

 12 V

 Capacity

 20 AH

 LIGHT OUTPUT

 Component

 570 Amber LED

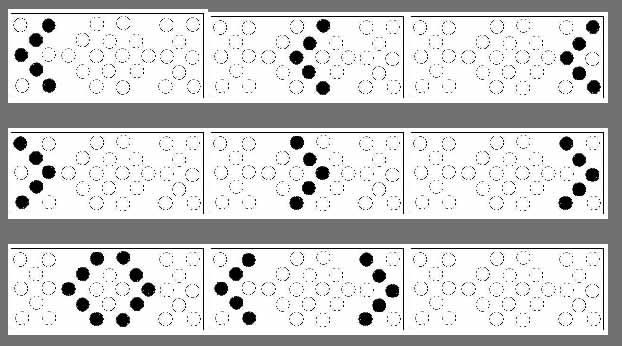

 Lighting Mode

 Sequence Flashing

 Flashing Frequency

 50 Cycles/minute

 Operation

 Continuous on

 Sensor On/Off Range

 --

 Power Consumption

 1440mW/s(day)
 180mW/s(night)

 GENERAL

 Housing Material

 Aluminum

 Size

  1,800mmx810mmx120mm

 Net Weight

 --

 Working Temperature

 -20¢J ¡ã +60¢J

 Storage Temperature

 -20¢J ¡ã +80¢J



¡@

¡@

Remarks :

1. Standard Test Condition : 25¢J,  100,000 Lux.

2. Suggested Minimum Sunlight Condition : average 2.5 hours x 75,000 Lux per day,

    consecutive gloomy (no sunlight) weather not more than 12 days.

¡@

Notices:

   Avoid the area which is heavily treed and lights are in shade most of the day.

   Need to get sun during the day to charge its¡¦ battery.

   Keep all the solar cells away from shadowing.
   Research and development continues to improve the functionality of the product's
   features and as such, the information herewith may be changed without notice.
   Subject to our final confirmation.

¡@

¡@
